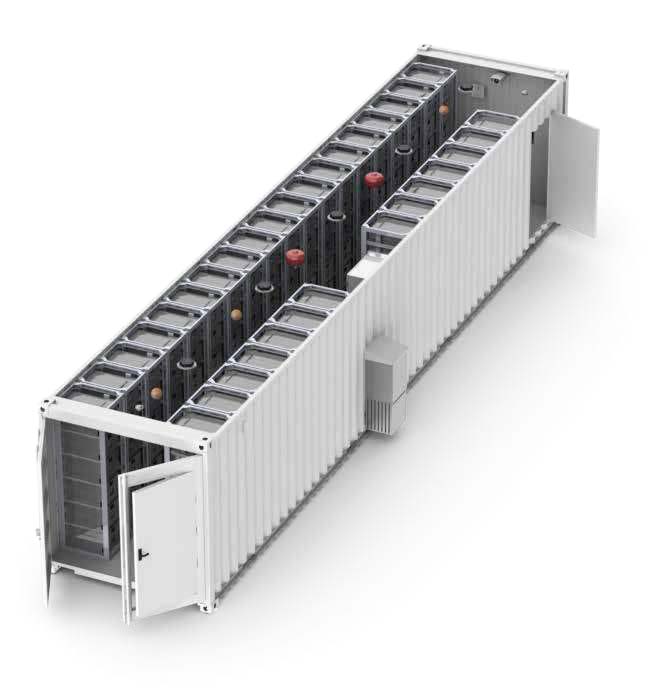

The ENCAP containerized system generally consists of an energy storage battery system, a monitoring system, a battery management unit, a dedicated fire protection system, a dedicated air conditioner, an energy storage converter, and an isolation transformer, and is finally integrated in a 40-feet container. This "turnkey" system is designed to meet the demanding requirements for residential, C&I and utility side applications alike, committed to making the power interconnected reliably.
| Items | Description | Quantity |
|---|---|---|
| Storage Capacity | 10kwh,48V x 165 | 1650KWh |
| Monitoring Rack | 1 | |
| Distribution panel | 1 | |
| Industrial PC | 19 Inch | 1 |
| Modules Rack | 33 | |
| CCTV Dome Camera | 2 | |
| Industrial WIFI Router | 1 | |
| Surface Light | 18W White | 5 |
| T&T infrared Motion Sensor | Roof Mounted | 2 |
| PVC Wall Switch 1Gang 2-way ,16AX/250V | With Box | 2 |
| AC Isolator Switch | 35A, UKF2, 250V | 1 |
| Emergency Exit Light | 3 | |
| Environment controller | CC Controller 3000 | 1 |
| Free Cooling Unit | 2 | |
| AC Unit | 45000BTU | 1 |
| Fire Ball | 3 | |
| Fire Extinguisher | Dry Powder | 2 |
| Fire Extinguisher | Automatic (Dry Powder) | 2 |
| Automatic Fire Suppression System | Direct Module | 1 |
| Fire Alarm Intelligent Controller | Wireless | 1 |
| Heat Detector | Wireless | 2 |
| Main Controller | 1 | |
| Sub Controller | 11 | |
| Contactor Box | 11 |
| Items | Description | Quantity |
|---|---|---|
| Energy Server | Ac Input/Output 400V, 50hZ | 2MW |
| Storage Capacity | 10kwh,48V x 45 | 450KWh |
| Monitoring Rack | 1 | |
| Distribution panel | 1 | |
| Industrial PC | 19 Inch | 1 |
| Modules Rack | 9 | |
| CCTV Dome Camera | 2 | |
| Industrial WIFI Router | 1 | |
| Surface Light | 18W White | 5 |
| T&T infrared Motion Sensor | Roof Mounted | 2 |
| PVC Wall Switch 1Gang 2-way ,16AX/250V | With Box | 2 |
| AC Isolator Switch | 35A, UKF2, 250V | 1 |
| Emergency Exit Light | 3 | |
| Environment controller | CC Controller 3000 | 1 |
| Free Cooling Unit | 2 | |
| AC Unit | 45000BTU | 1 |
| Fire Ball | 3 | |
| Fire Extinguisher | Dry Powder | 2 |
| Fire Extinguisher | Automatic (Dry Powder) | 2 |
| Automatic Fire Suppression System | Direct Module | 1 |
| Fire Alarm Intelligent Controller | Wireless | 1 |
| Heat Detector | Wireless | 2 |
| Main Controller | 1 | |
| Sub Controller | 3 | |
| Contactor Box | 3 | |
| Auxiliary Inverter | 20kVA | 1 |
| Auxiliary Module | 28Kwh, 384V | 1 |
| PERFORMANCE | |
|---|---|
| Total Energy | 2MWh |
| DC SIDE | |
| Voltage (Nominal) | 750Vdc |
| Maximum Charge Voltage | 810 Vdc (Adjustable) |
| Discharge Cut-Off Voltage | 720 Vdc (Adjustable) |
| Maximum Continuous Charge Current | 3668A (~1C) |
| Maximum Continuous Discharge Current | 3668A (~1C) |
| AC SIDE | |
| Voltage | 400Vac |
| Frequency | 50/60 Hz |
| Maximum Current | 2888A |
| SMART FEATURES | |
| Monitoring Data | Temperature, Total Voltage, Current and Energy |
| Remote control (optional) | Via Centauri View App |
| Communication and Connectivity | CANBUS |
| Alarm | Audible alarms in the event of Over/ under-Voltage, Over-Current, Over Temperature |
| ENVIRONMENTAL SPECIFICATIONS | |
| Cell Operating Temperature | -30oC to 70oC |
| Operating Humidity | Non-Condensing |
