| SPECIFICATIONS | |
|---|---|
| LCD Screen Size | 3.5 Inch |
| LCD Screen Resolution | 320 x 480 |
| Voltage | 3.3V, 5V |
| Touch Interface | >Capacitive with 2-point multitouch |
| SoC | ESP32-WROVER-B module |
| Wired Technology | USB |
| Wireless Technology | Bluetooth,WIFI |
| Flash Memory | 4MB |
| External RAM | 8MB |
| Connector | USB-C |
| Operating Temperature | -20 to +85 °C |
| ENCONNECT Software | Module Monitoring - Total Voltage, Individual Cell Voltages, Current, Temperatures, SOC, Energy Consumed and Warning Alarms |

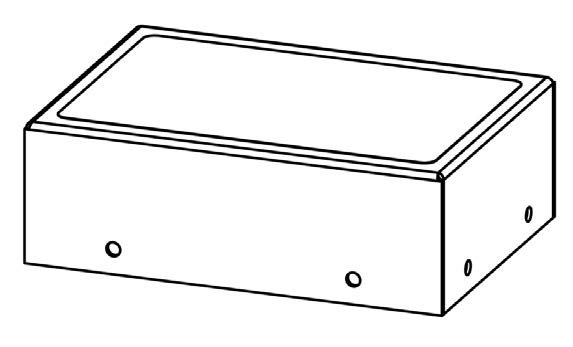

| MECHANICAL SPECIFICATIONS | |
|---|---|

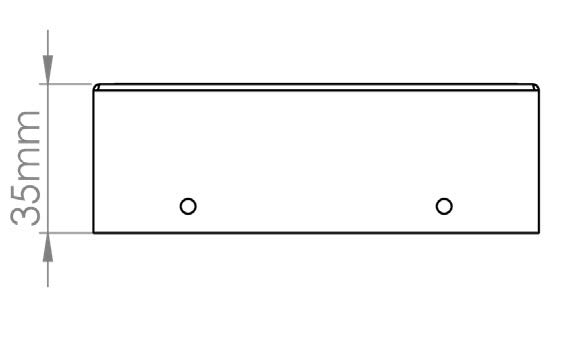

| Dimensions (W x H x D) mm | 105 x 75 x 35 |
| Weight (kg) | 0.5 |
