| SPECIFICATIONS | |
|---|---|
| Voltage | 200Vdc - 1000Vdc |
| Charge Control | 200A |
| Discharge Control | 200A |
| DC Bypass for Overload Current | >20A |
| Pre-charge Current | 10A via 200W limiting Resistor |
| DC Breaker | 200A 1Pole |
| Protection | Short Circuit Protection, High Current (Charging / Discharging) Protection |
| Manual Bypass Breaker | 125A 1Pole |
| Communication | RJ45 Port (CANBUS Communication) |
| Dry Contact Control | >DB 25 Pin |
| LED Indicator | Pre-charge, Charge, Discharge, Bypass, Fan |
| Compatibility | Work only through EN Rack Controller |
| MECHANICAL SPECIFICATIONS | |
|---|---|

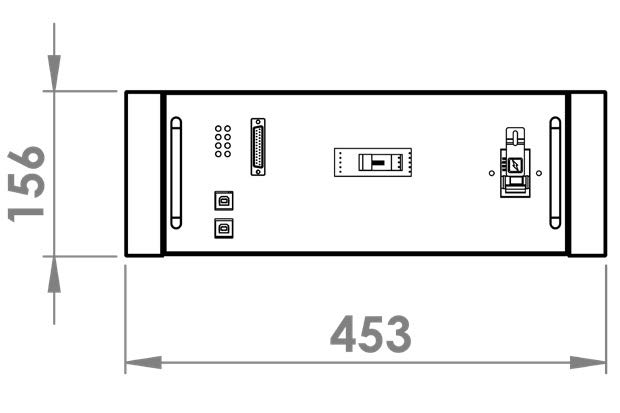

| Dimensions (W x H x D) mm | 453 x 156 x 507 |
| Weight (kg) | 18 |
| Material | GI/AL/Plastic |
