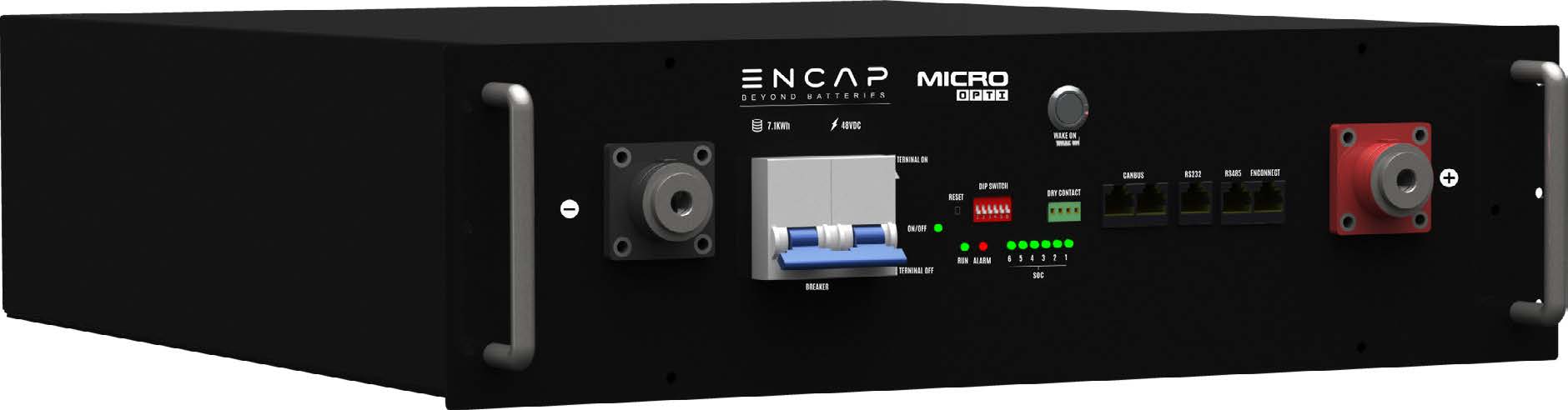

Micro Opti Module 7.1KWH-48V

...
...

EFFICIENT

  • Highly Efficient: > 95% RTE (Round Trip Efficiency)
  • 100% DOD (Depth of Discharge)
  • 500,000 Cell Life Cycles
    • ...

    SAFE & RELIABLE

  • Wide Operating Temperature Range
  • Deployable in Various Environments including High Altitudes
  • No Thermal Runaway Risk
    • Download datasheet
    PERFORMANCE SPECIFICATIONS
    DC Energy
    7.1kWh
    Voltage Range
    43.2Vdc to 60.8Vdc
    DC Voltage (Nominal)
    48Vdc
    Internal Resistance
    moin de 4 mili Ohms
    ...
    CELL SPECIFICATIONS
    Technology
    Encapsulated Cell
    Nominal Cell Voltage
    6.4 ~6.6Vdc / Cell (Encapsulated) 1/2 + 0.12V Envelope
    CHARGE CHARACTERISTICS
    Maximum Continuous Charge Current
    150A (~1C)
    Charging Method
    CC/CP/VP
    ...
    DISCHARGE SPECIFICATIONS
    Maximum Continuous Discharge Current
    150A (~1C))
    Discharging Method
    CC/CP/VP
    EN-CONNECT SOFTWARE2
    Module Monitoring2
    Total Voltage, Individual Cell Voltages, Current, Temperatures, SOC and Energy Consumed
    MODULE ENVIRONMENTAL SPECIFICATIONS
    Operating Temperature Range
    -30oC~ +70oC
    Operating Humidity
    Non-Condensing
    ...
    MECHANICAL SPECIFICATIONS

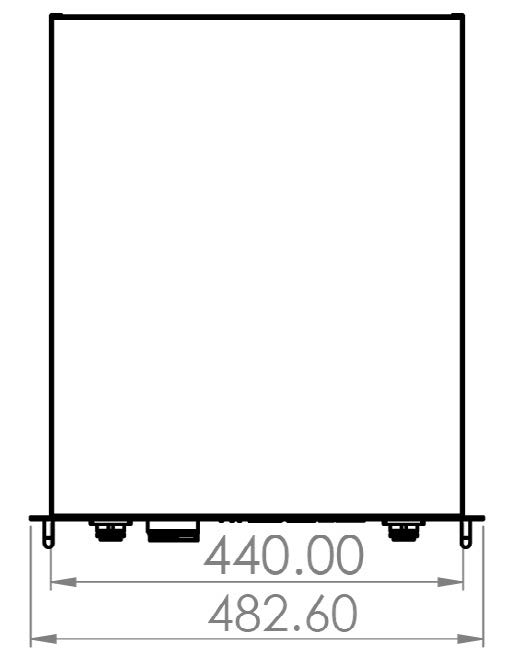

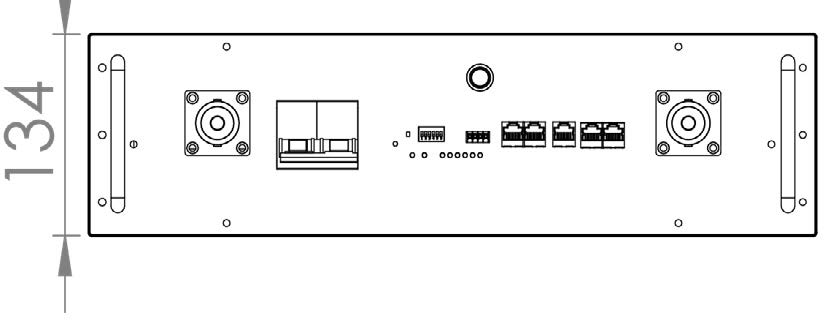

    Dimensions1 (W x H x D) mm
    482 x 134 x 568
    Weight (kg)
    43
    Module Casing Material
    GI Powdered
    Terminal Type
    300A Terminal Post
    ...
    SMART FEATURES
    Circuit Breaker Protection
    2P 125A Breaker
    OLED Display
    Monitor Module
    Communication
    CANBUS , RS232, RS485
    Alarm
    Buzzer alarm in the event of Over/under-Voltage, Over-Current, Over Temperature
    Dry Contacts Output
    Four programmable Dry Contacts
    ...
    SAFETY PERFORMANCE
    Short Circuit Protection
    Through MCB and Encontactor
    Over/under Voltage
    Through Encontactore
    Over Current
    Through MCB and Encontactor
    Over Temperature
    Through Encontactor
    SERVICE LIFE
    Cells Projected Cycle Life3
    500,000 cycles
    Cells Projected Calendar Life4
    25 years
    Module Projected Shelf Life5
    10 years
    Warehousing
    Can be stored at any SOC without affecting cycle life
    ...
    PRECAUTIONS
    Alarm
    In case of alarm, immediately rectify/attend to the cause of the alarm.
    Physical Damage
    In case the Module is physically damaged due to any event, do not install and energize the Module under any circumstances and contact your Reseller or After Sales Support.
    Short Circuit
    Ensure precautions to prevent short-circuit under all circumstances.
    Galvanic Isolation
    When connecting to external devices ensure that galvanic isolation of the external device(s) does not exceed 1000V.
    Series Connection
    All Modules must be at 100% SOC before connecting in series. Do not Connect in series without controller.
    Parallel Connection
    All Modules must be at 100% SOC before connecting in parallel. There is no limit on the number of Modules that can be connected in parallel.
    Series-Parallel Connection
    Series-Parallel Connection Modules can be connected in series-parallel combination through Encontactor and encontroller refer to ENRack for better performance.

    1 Product Dimensions are for reference only and may change without notice.

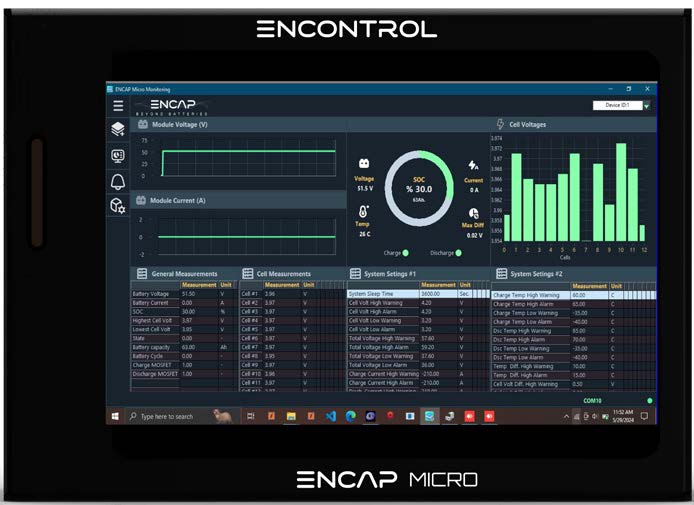

    2 The ENCONTROL tool is an OLED display designed for Module monitoring. Please note SMART FEATURES are not part of the standard Module and require separate purchase of ENCONTROL tool.

    3 Projected Life of encapsulated cells.

    4 Projected Calendar Life of encapsulated cells from the date of first operation.

    5 Shelf Life is the Life of the Module (in years) from the date it is manufactured to the time it is first operated.

  • Additional terms and conditions, including a limited warranty, will apply at the time of purchase.
  • For critical applications, please contact your Reseller or After Sales Support
    • Download datasheet
    ...
