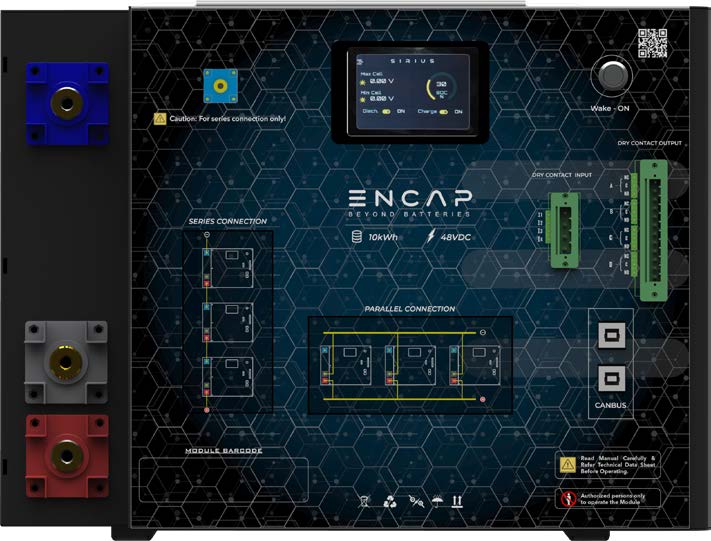

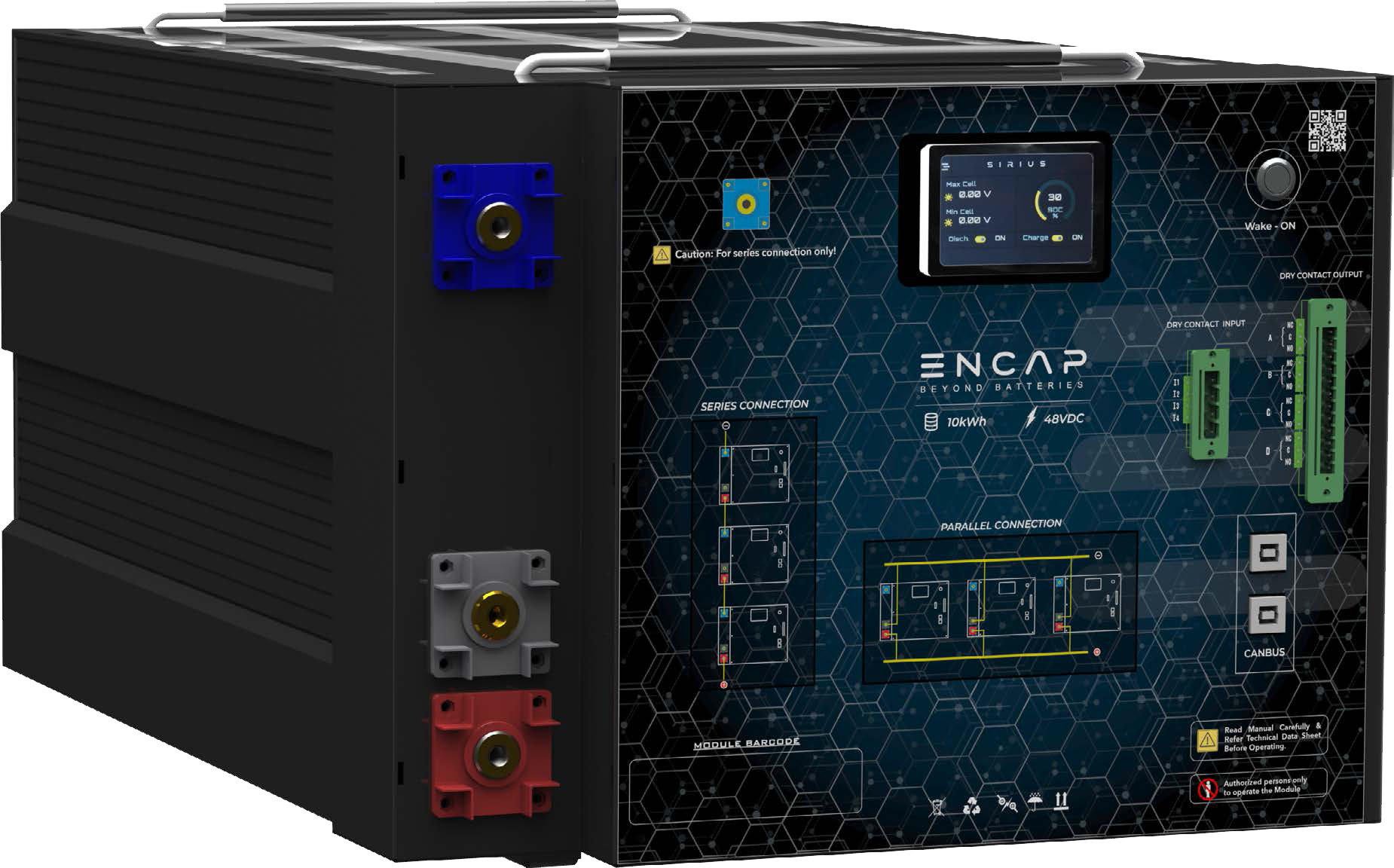

Batterie ENCAP 10KWh 48V

...
...

SMART MANAGEMENT

  • Feature-rich Online Monitoring via App or OLED Display
  • Automatic Firmware Updates
  • Warning Alarms
    • ...

    EFFICIENT

  • Highly Efficient: > 95% RTE (Round Trip Efficiency)
  • 100% DOD (Depth of Discharge)
  • 500,000 Cell Life Cycles
    • ...

    SAFE & RELIABLE

  • Wide Operating Temperature Range
  • Deployable in Various Environments including High Altitudes
  • No Thermal Runaway Risk
    • Download datasheet
    PERFORMANCE SPECIFICATIONS
    DC Energy
    10kWh
    Voltage Range
    43.2Vdc to 60.8Vdc
    DC Voltage (Nominal)
    48Vdc
    Internal Resistance
    moin de 4 mili Ohms
    ...
    CELL SPECIFICATIONS
    Technology
    Encapsulated Cell
    Nominal Cell Voltage
    6.4 ~6.6Vdc / Cell (Encapsulated) 1/2 + 0.12V Envelope
    CHARGE CHARACTERISTICS
    Maximum Continuous Charge Current
    200A (~1C)
    Charging Method
    CC/CP/VP
    ...
    DISCHARGE SPECIFICATIONS
    Maximum Continuous Discharge Current
    300A (~1.5C)
    Discharging Method
    CC/CP/VP
    EN-CONNECT SOFTWARE
    Module Monitoring
    Total Voltage, Individual Cell Voltages, Current, Temperatures, SOC and Energy Consumed
    MODULE ENVIRONMENTAL SPECIFICATIONS
    Operating Temperature Range
    -30oC~ +70oC (See Fig.1:Temperature Specifications)
    Operating Humidity
    Non-Condensing
    ...
    MECHANICAL SPECIFICATIONS

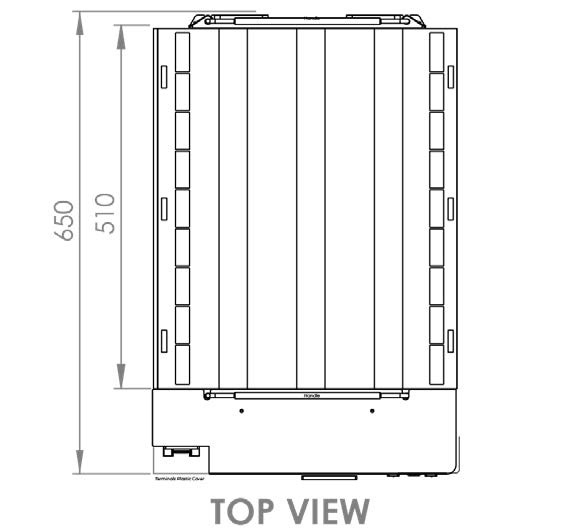

    Dimensions1 (W x H x D) mm
    433 x 335 x 650
    Weight (kg)
    120
    Module Casing Material
    GI Powdered
    Terminal Type
    300A Terminal Post
    ...
    SMART FEATURES

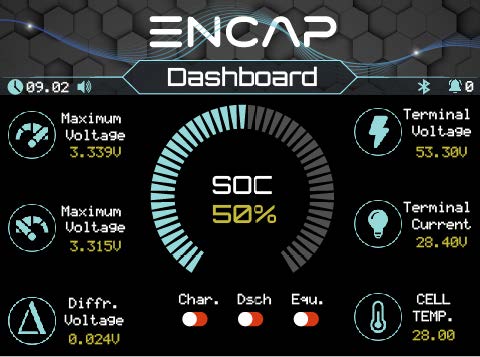

    OLED Display
    Monitor Module
    Communication
    WIFI / CANBUS / Bluetooth
    Alarm
    Buzzer alarm in the event of Over/under-Voltage, Over-Current, Over Temperature
    Dry Contacts Output
    Four programmable Dry Contacts
    Dry Contacts Input
    24Vdc three digital input with isolated ground
    ...
    SAFETY PERFORMANCE
    Short Circuit Protection
    Electronic Switching, Terminal Cut-off
    Over/under Voltage
    Electronic Switching, Terminal Cut-off
    Over Current
    Electronic Switching, Terminal Cut-off
    Over Temperature
    Electronic Switching, Terminal Cut-off
    ...
    SERVICE LIFE
    Cells Projected Cycle Life2
    500,000 cycles
    Cells Projected Calendar Life3
    25 years
    Module Projected Shelf Life4
    10 years
    Warehousing
    Can be stored at any SOC without affecting cycle life
    PRECAUTIONS
    Alarm
    In case of alarm, immediately rectify/attend to the cause of the alarm.
    Physical Damage
    In case the Module is physically damaged due to any event, do not install and energize the Module under any circumstances and contact your Reseller or After Sales Support.
    Short Circuit
    Ensure precautions to prevent short-circuit under all circumstances.
    Galvanic Isolation
    When connecting to external devices ensure that galvanic isolation of the external device(s) does not exceed 1000V.
    Series Connection
    All Modules must be at 100% SOC before connecting in series. Do not Connect in series without controller.
    Parallel Connection
    All Modules must be at 100% SOC before connecting in parallel. There is no limit on the number of Modules that can be connected in parallel.
    Series-Parallel Connection
    Modules cannot be connected in series-parallel combination under any circumstance.

    1 Product Dimensions are for reference only and may change without notice.

    2 Projected Life of encapsulated cells.

    3 Projected Calendar Life of encapsulated cells from the date of first operation.

    4 Shelf Life is the Life of the Module (in years) from the date it is manufactured to the time it is first operated.

  • Additional terms and conditions, including a limited warranty, will apply at the time of purchase.
  • For critical applications, please contact your Reseller or After Sales Support
